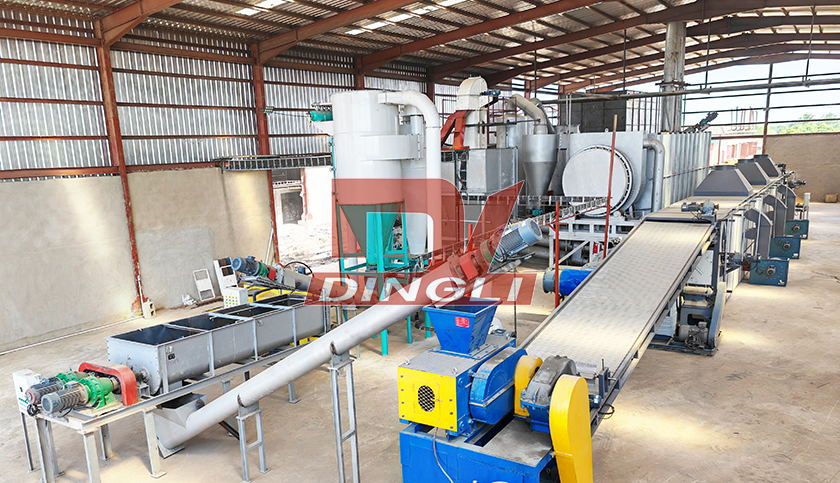

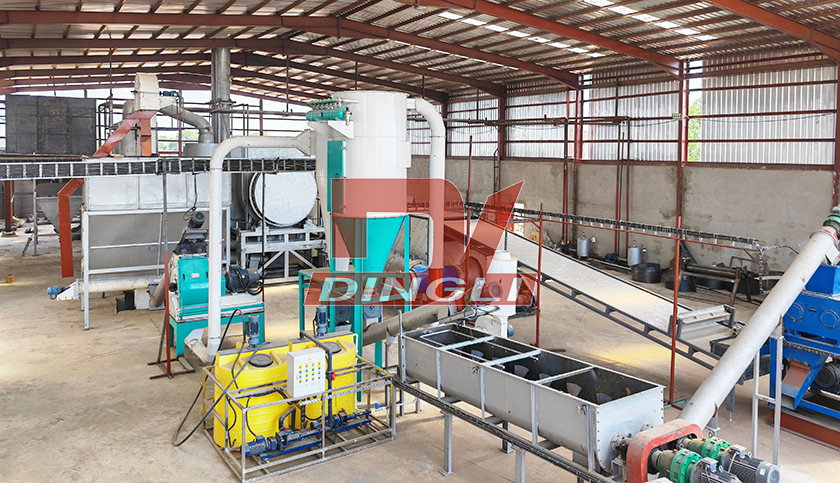

Charcoal briquette production line is a process of making charcoal briquettes from raw materials such as logs, bamboo, branches, agricultural waste, etc. through crushing, carbonization, briquette making, drying. Charcoal briquettes have the advantages of high density, small volume, good combustibility, smokeless, odorless and non-toxic. Charcoal briquettes have a wide range of applications and are widely used in heating, barbecue and other industries. In the industrial field, they are alternative raw materials for coal and heavy oil. They are also used as supplementary fuel for boilers because their density is close to that of coal and their calorific value is 5500-7000 kcal/kg, but their ash content is significantly lower than that of coal. Jiutian Machinery is a professional charcoal briquette machine making company with its own factory and R&D team, providing equipment at factory prices and professional services.
Generally, the entire production process can be divided into four parts.
1. Crushing
The raw materials for making charcoal briquettes can be wood, branches, bamboo, sawdust, coconut shells, rice husks, peanut shells, etc. After a certain amount of raw materials are prepared, they are crushed in a crusher to less than 5mm. However, if the raw materials are already in powder form, such as sawdust or bamboo powder, this step should be omitted.
2. Carbonization

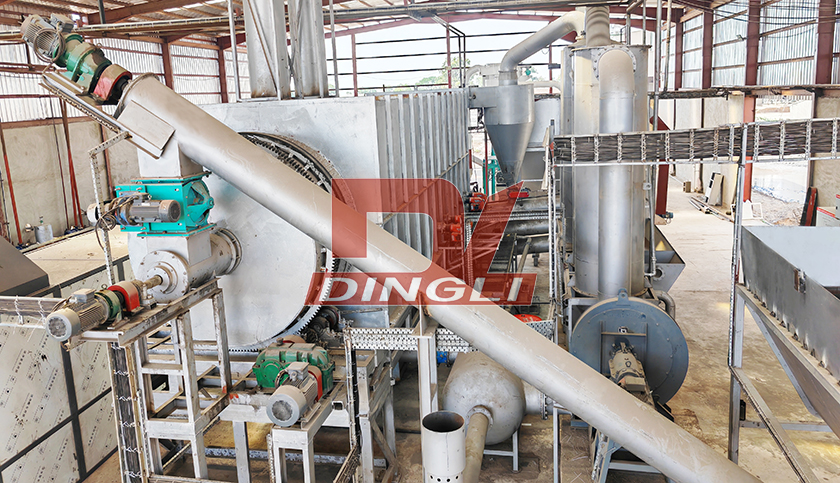

Put the crushed raw materials into a biomass carbonization machine, and the raw materials will be dry distilled and carbonized without oxygen under high temperature conditions.
3. Briquette making

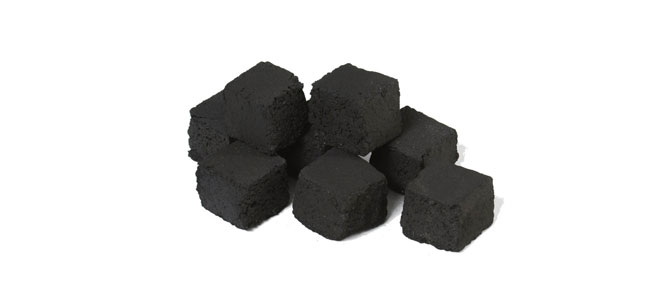

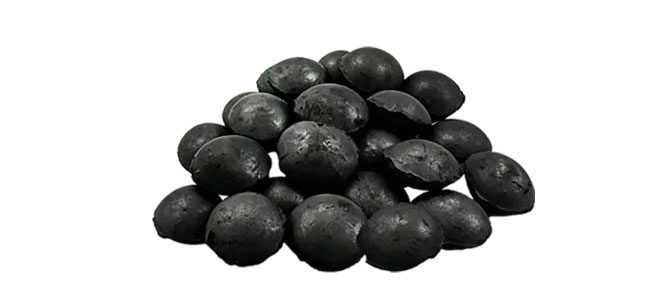

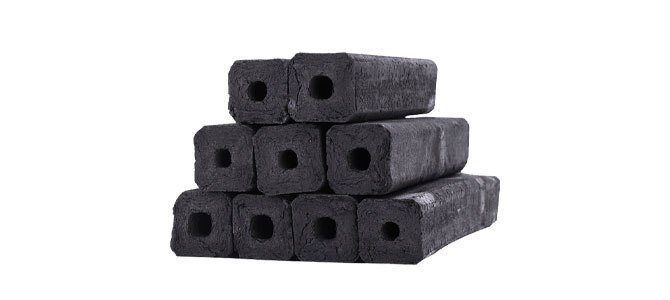

The charcoal powder obtained after carbonization is sent to charcoal powder briquetting machine and compressed into a predetermined shape of charcoal briquettes (cube, small circle, square, oval, pillow and strip) with a certain strength.
4. Drying

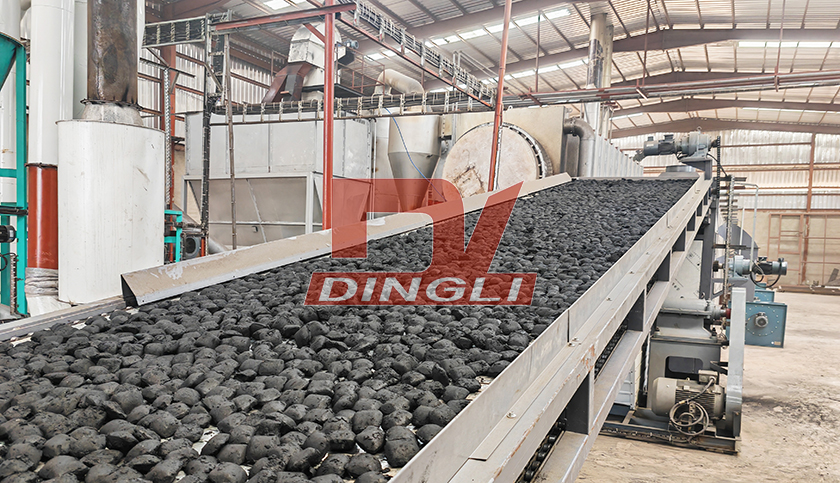

After the charcoal briquettes are dried by the charcoal briquette dryer, they can be stored or packaged.
| Model | Diameter(mm) | The drum length(m) | Carbon capacity(kg/h) | Drum speed(rpm) | Dimension(m) |
| DLTJ1010 | 1000 | 10 | 100-200 | 1.5-2.5 | 10.0*1.7*2.8 |
| DLTJ1210 | 1200 | 10 | 200-300 | 1.5-2.5 | 10.0*2.0*3.0 |
| DLTJ1410 | 1400 | 10 | 400-500 | 1.5-2.5 | 10.0*2.2*3.2 |
| DLTJ1612 | 1600 | 12 | 600-800 | 2.0-3.0 | 10.0*2.4*3.5 |
| DLTJ1912 | 1900 | 12 | 900-1100 | 2.0-3.0 | 12.0*2.8*3.8 |
| DLTJ2212 | 2200 | 12 | 1200-1500 | 2.0-3.0 | 12.0*3.2*4.2 |
| DLTJ2512 | 2500 | 12 | 1600-2000 | 2.0-3.0 | 12.0*3.5*4.5 |
| DLTJ3012 | 3000 | 12 | 2200-2600 | 2.0-3.0 | 12.0*4.0*5.0 |
| DLTJ3612 | 3600 | 12 | 3000-3800 | 2.0-3.0 | 12.0*4.6*5.6 |

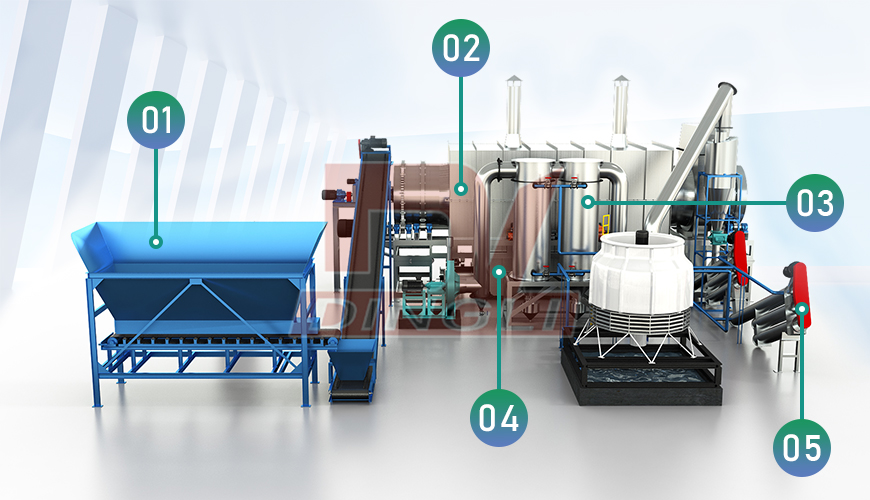

The charcoal briquette machine is core equipment of the charcoal briquette production line. It processes raw materials including logs, bamboo, branches and agricultural waste. Cooperating with supporting facilities for crushing, carbonization, briquetting and drying, it produces high‑quality charcoal briquettes.
Customize machine solution according to your actual needs.Suitable to process wood, coconut shell, walnut shell, apricot shell, hemp pole, sawdust, rice husk, bamboo, coffee grounds, palm shell and other materials into charcoal briquette.
1.Capable of carbonizing biomass with moisture below 25% and particle size under 30mm, covering a wide range of common biomass types.
2.Produces carbon products suitable for fuel, water-smoke carbon, metallurgical carbon, and activated carbon raw materials with precise control over volatile matter (10-25%).
3.Designed with patented technology and premium materials to ensure fully enclosed, pollution-free production with stable performance and long service life.
4.Enables adjustable carbonization depth and volatile content to meet varied industrial requirements while maintaining high carbonization efficiency.
Machine purifies carbonized flue gas into combustible gas. It can continuous product 24 hours.
Self-produced flue gas can be used for circulating combustion, saving a lot of fuel costs.
With flue gas purification system, the production environment has no smoke emissions.
We ensure that every part of the machine has high safety, We have many operational safety designs.
Professional R & D design team, 300+ patent certificates.
The technical team customizes project solutions for customers.
Provide equipment installation and commissioning services.
The professional after-sales team is always at your service.

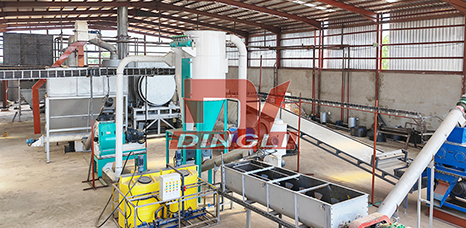

Dingli carbonization/pyrolysis machines have been successfully deployed and are operating reliably across numerous countries and regions. In addition to high-performance equipment, our solutions enable customers to earn Carbon Credits through sustainable biochar production and biomass utilization. Should you have any questions about the carbonization/pyrolysis machine or wish to arrange a factory visit, we warmly welcome your inquiry.
